Name: Capacitive Touch Large Memory Biometric Fingerprint Scanner Android 45 inch display
Brand: Speedata
Price: 1 USD

Home > Other Access Control Products >

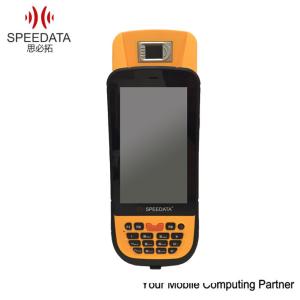

Capacitive Touch Large Memory Biometric Fingerprint Scanner Android 4.5 inch display

Categories	Biometric Fingerprint Scanner
Brand Name:	Speedata
Model Number:	KT45-FZ06
Certification:	IP65 CE
Place of Origin:	China
MOQ:	1pc
Payment Terms:	Western Union, MoneyGram, T/T, PayPal , Escrow, L/C, D/A, D/P
Supply Ability:	3000pcs / month
Delivery Time:	5-7days after receiving payment
Packaging Details:	1 individually packing with standard accessories
Display:	4.5 TFT LCD Display
Dimension:	1828236mm
CPU:	Quad-core 1.3Ghz ARM® Cortex-A7 MPCoreTM
ROM:	8GB
RAM:	1GB
Extend Slot:	Micro SD 32G

Contact Now

Add to Cart

Company Info.

Beijing Speedata Technology Co., Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Capacitive Touch Large Memory Biometric Fingerprint Scanner Android 4.5 inch display

Fingerprint Module Specification

sensor UPEK TCS2SS
1:1 verification matching speed < 500ms(Feature extraction and fingerprint matching)
1:1000 Fingerprint search time < 1s
Resolutions 500DPI
Image Size 256x288 pixels
Security level 5, adjustable
Capacity 1000 fingerprints
FAR ＜0.005% (Security Level is 3)
FRR ＜0.008% (Security Level is 3)
Working current <100mA
Peak current <120mA
Communication interface TTL(RS232)
Communication Baud rate 38400bps,57600bps,115200bps
Working temperature -10℃~50℃
Working humidity 45%RH~85%RH (no dew)

Data Sheet

Display			4.5inch IPS 480*854 Capacitive
touch screen			Capacitive
Form Factor			Bar type classical Pocket PC,Industrial appearance
GPS			UBLOX module
Bluetooth			v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi			JORJIN WG7310 WiFi (802.11 b/g/n)
RFID Reader		option1	LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)
		option 2	LF RFID(125KHz)
		option 3	HF RFID(13.56MHz ISO 14443A/B)
		option 4	HF RFID(13.56MHz ISO 1443A/B ISO 15693)
		option 5	NFC Reader (only android OS)
		option 6	UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
		option 7	UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct modee----with inpinj R2000 shipset
Barcode scanner		option 1	NEWLAND:EM1300(1D Infrared barcode reader)
		Yes	NEWLAND:EM3095(1D/2D barcode reader)
		option3	symbol:SE955(1D laser barcode reader)
		option4	HoneyWell:N4313 (1D laser barcode reader)
		option 5	Honeywell:5100(1D/2D barcode reader)
		option 6	symbol se4500(1D&2D bar code reader)
External Interface			USB HOST/RS232(Customized)
Protection class			IP 65
Drop resistance level			1.5m
Camera Function	Camera		8MP AF
	Video		Support still image and video capture
Keypad	Front
	Side

Key features

1. 4.5 inch IPS , outdoor sunlight visible

2. Industrial-grade mobile handheld device
3. IP65 industrial standard waterproof , dustproof , drop resistance
