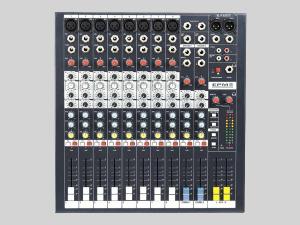

EPM8 professional 8channels sound console

Categories professional mixer series
Place of Origin: china
Brand Name: kebit
Model Number: EMP8
MOQ: 50
Price: USD205
Packaging Details: carton packaging
Delivery Time: 5~7
Supply Ability: there is no limit
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

EPM8 professional 8channels sound console

Main functions and features:
A true two grouping mixer. 2,12 Road 20 mono and two stereo inputs (MPM12 / 2, MPM20 / 2). 3, high quality, low noise balanced microphone
Inputs. 4, Mono and main output signals with some insertion point for external signal processors. 5, each microphone inputs are equipped with high-quality 48V phantom power. 6 IF sweep
Three-band EQ frequency, the British style. 7, three AUX auxiliary output, you can add processors. 8, high-precision three-color precision level column, accurately display the output level. 9,60 MM line
A high degree of process analysis fader. 10, a circuit board using double-sided SMT technology, the performance of the regulator and reliable. 11, built-in mute switch power supply, easy to use and flexible
Technical parameters:
1, Frequency Response: Mic / Line input to any output: 20Hz-20kHz, /-0.5dB
2, total harmonic distortion Noise: Microphone Gain 30dB,-20dBu input, maximum output, 1kHz and push
Child at ± 0dB when: ≤ 0.004%
3, the noise (measurement bandwidth 22Hz-22kHz): Equivalent Input Noise (maximum gain) as: 28dB
(Original impedance 150Ω)
4, inter-channel crosstalk (1kHz): Channel Mute:> 93dB
5, fader cut (reference marker 10):> 93dB
6, AUX send mouth shut:> 83dB
7, EQ (mono input): HF: 8kHz /-15dB MF (sweep): 50Hz-3.5kHz,
/-15dB LF: 150Hz /-15dB Q: 1.5
8, EQ (stereo input): HF: 7kHz /-15dB MF: 720Hz /-15dB LF: 60Hz /-15dB
9, power consumption: MPM20 / 2:35 W MPMl2 / 2:30 W
10, the working conditions: AC :90-240V Temperature range: 0 ℃ -40 ℃
11, the input and output level: Microphone Input: Maximum 16dBu
12, line input: Maximum 30dBu
13 stereo inputs: max 30dBu
14 mix outputs: Maximum 20dBu
15, headphone output (200Ω); 300mW
16, the input and output impedance: Mic Input: 2.4KΩ
17, line input: 11KΩ
18 stereo inputs: 100KΩ
19, output impedance: 75Ω
