| Categories | Vehicle Loop Detector |
|---|---|
| Brand Name: | WONSUN |
| Model Number: | WSTV-410 |
| Certification: | CE, ISO, SGS |
| Place of Origin: | China |
| MOQ: | 1PC |
| Price: | negotiation |
| Payment Terms: | T/T,Western Union,Money Gram, Trade Assurance,Paypal etc., |
| Supply Ability: | 1000 Sets/Month |
| Delivery Time: | 3-7 working days after received your payment |
| Packaging Details: | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| Supply voltage: | 24V 12V |
| Signal holding time: | Unlimited |
| Sensitivity: | Adjustable in 3 increments |
| Operating temperature: | 220℃ to +65℃ |
| Reaction time: | 100ms |
| Size of Housing: | 78x36x85 mm |
| Company Info. |
| Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Vehicle Loop Detector for Accurate Parking Guidance
Quick Detail:
vehicle loop detector
Applications:

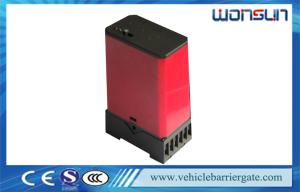

The WSTV-410 vehicle loop detector is a double channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.
Specifications
Supply voltage: | AC: 220V, 110V, 24V, 12V ( See the label on the detector) |
Voltage tolerance AC | +10% / -15% |
Voltage tolerance DC | ±15% |
Supply voltage | 24V 12V |
Output relays | 240V/5A |
Operating temperature | -220℃ to +65℃ |
Storage temperature | -40℃ to +85℃ |
Frequency range | 20 kHz to 170 kHz |
Reaction time | 100ms |
Signal holding time | Unlimited |
Sensitivity | Adjustable in 3 increments |
Loop connection wiring | Maximum length 20 meters, |
Size of Housing | 78x36x85 mm (L x W x H) |
|
