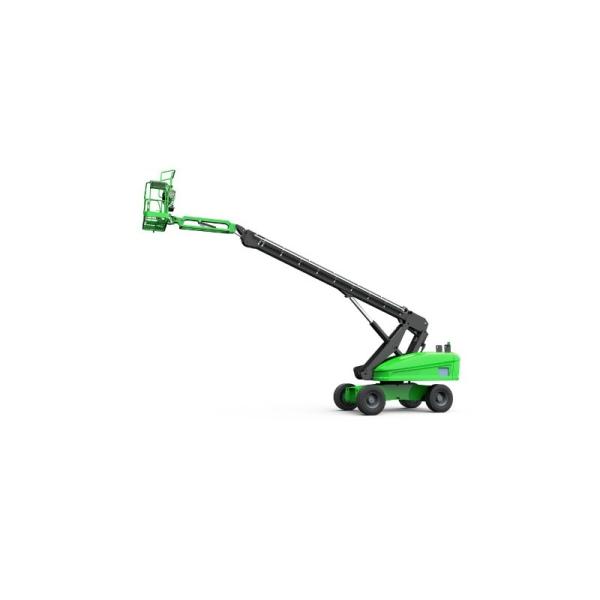

Telescopic Boom Lift Aerial Work Platform Unmatched Reach for Elevated Work

Telescopic Boom Lifts: Unmatched Reach for Elevated Work

Key Features:

  • Industry-leading extension capability with telescoping arm system

  • Heavy-duty construction for demanding outdoor applications

  • Superior height and horizontal reach compared to articulated models

  • 360° rotation available on select models for optimal positioning

  • Rugged all-terrain tires for stable operation

Ideal Applications:


✓ High-rise construction (steel beams, facades)

✓ Infrastructure maintenance (bridges, cell towers)

✓ Stadium and arena upgrades

✓ Industrial exterior services

✓ Arboricultural operations


Why Professionals Choose Telescopic Booms:


• Exceptional horizontal extension

• Continuous operation at full extension

• Designed for outdoor durability


Perfect for projects requiring:

  • Extended work periods at height

  • Material handling to elevated positions

  • Access to difficult-to-reach areas

  • Stable performance on uneven terrain


Main Configurations of Man Pushing Around Aluminum Aerial Work Platform

1-Power Source: Diesel Engine And Battery
2-Integrated Design Work Platform, Integrated Control System, Convenient To Control The Front And Back, Left And Right, Elevation And Lowering Of The Equipment
3-Hydraulic Cylinder Adopts Imported Double-Layer Sealing Ring, No Oil Leakage For Long-Term Use, Safe And Stable, And Low Failure Rate
4-Microcomputer Electrical Control System Supports The Equipment Self-Inspection And Timely Grasps The Working Dynamics Of The Equipment, So As To Facilitate The Inspection Of Equipment Failures
5-Optimize The Overall Layout Of The Equipment, Reduce The Deviation Of The Center Of Gravity Of The Equipment, Balance The Working Torque, And Improve The Stability Of The Equipment

ModelHT18JHT20JHT24JLiHT26JLi
Max.Working Height20.5m21.6m26.2m28.8m
Max.Platform Height18.5m19.6m24.2m26.8m
Max.Working Radius13.2m14.5m20m22m
Length(Stowed)9.8m10.3m10.9m11.7m
Width(Stowed)2.49m2.49m2.49m2.49m
Height(Stowed)2.26m2.26m2.92m2.92m
Platform Size1.8*0.75m1.8*0.75m2.4*0.9m2.4*0.9m
Wheel Base2.5m2.5m3.2m3.2m
Ground Clearance0.3m0.3m0.3m0.3m
Max Load Capacity300kg300kg300kg/450kg300kg/450kg
Platform Rotation±80°±80°±80°±80°
Jib Range±70°±70°±70°±70°
Turntable Rotationcontinuous 360°continuous 360°continuous 360°continuous 360°
Drive Speed(Stowed)4.8km/h4.8km/h5.5km/h5.5km/h
Gradeability45%45%45%45%
Max. Working Slope3°3°3°3°
Turning Radius (Outer)5m5m6.5m6.5m
Driving Steering Mode4*24*24*24*2
Power Source48V/420AH48V/420AH80V/500AH80V/500AH
Pump Motor12kw12kw30kw30kw
Driving Motor3.3kw3.3kw5.2kw5.2kw
Control Voltage12v12v12v12v
Weight8520kg9100kg15100kg16600kg

Our Company

Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.
We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
