| Categories | Outdoor Full Color LED Display |
|---|---|
| Place of Origin: | Shenzhen, China |
| Brand Name: | Meltonled |
| Certification: | CE, RoHS, ISO,FCC,UL |
| Model Number: | P10-4 |
| MOQ: | 1pc/1sqm |
| Price: | 10usd/pc |
| Packaging Details: | Anti-shaking wooden case/flight case/carton |
| Delivery Time: | 8-10 days |
| Payment Terms: | 35% T/T as prepayment,65% T/T as balance at factory |
| Supply Ability: | >5000sqm/month |
| Delivery term: | Ex-work/FOB/CIF/DDU |
| Product Name: | Outdoor Full Color Led Display |
| Application: | Outdoor |
| Tube Chip Color: | Full Color |
| Pixel Configeration: | 1R,1G,1B |
| Pixel Density: | 10000 dot / m2 |
| Resolution(W*H): | 16dots*16dots |
| Company Info. |
| Melton optoelectronics co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

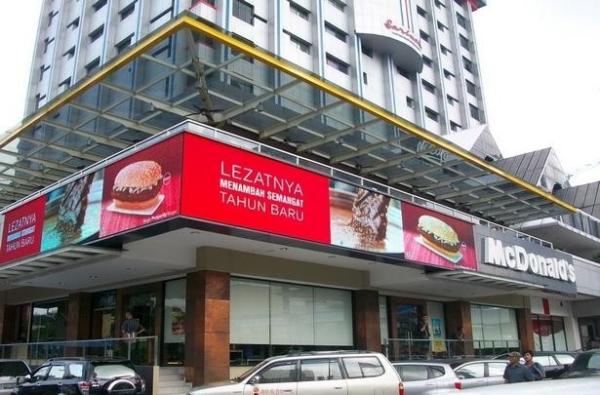

10000 dot / m2 10mm Large Video Outdoor Full Color Led Display 9216 Pixel
1.led outdoor waterproof video
2.Wide viewing angle and large viewing distance video led
3.Super brightness 8000nits
4.Energy saving 40%
5.CE.RoHS,CCC,ISO,UL
1)Outdoor led video System structure
2)outdoor led video Module
Module Size(W * H) | 160mm*160mm | Pixel Configeration | 1R,1G,1B |
Pixel Pitch | 10mm | Resolution(W*H) | 16dots*16dots |
Pixel Density | 10000 dot / m2 | Driving Method | 1/4 scan Current |
3)led video cabinet
Cabinet Size(W * H) | 960mm*960mm | Module Qty | 36pcs |
Cabinet Resolution(W * H) | 96dots*96dots | Cabinet Pixel | 9216 |
Weight | 50kg/pc | Area | 0.9216(m2) |
Avarage Power Consumption | 200W/m2 | Max Consumption | 600W |
4)Program diagram
5)Outdoor led video technical parameter
| Product model number | Mled-PH10-864 |
| 1.Pixel | |
| Pixel L ED | 3535 |
| Pixel Configuration | 1 R, 1G , 1B |
| Wave length ( nm ) | R: 800-1000 , G:2040-2450, B: 360-430 |
| Pixels Pitch ( mm ) | 10 |
| 2 . Module | |
| Module Size ( mm ) | 320 * 160 * 20 |
| Module Pixels (dot) | 32 * 16 |
| 3.Unit box | |
| Module quantities in a unit box | 6 (L) * 6 ( H ) |
| Unit box size ( mm ) | 960 (L) * 960 (H) * 150 |
| Unit box Pixels ( dot ) | 96 * 96 |
| Unit box material | Aluminum or Iron |
| Unit box weight (kg) | Aluminum : 40 or Iron : 55 |
| 4.Packaging | |
| Packing Way | Two unit boxes |
| Packing box material | Wooden case or Flight box |
| 5.electricity parameter | |
| Pixel density (dots/ m2 ) | 10000 |
| White Balance Brightness ( cd/m2 ) | ≥7500 (adjustable) |
| Color temperature ( K ) | 5000-9500 (choice by user) |
| Brightness Adjusted | 100 grade by software or by Auto-optic induced. |
| View Angel | Horizontal 120 ° ; Vertical 120 ° |
| Best viewing distance ( m ) | 16-150 |
| Communication distance ( m ) | Internet Wire : 120 Fiber Cable : 1000 |
| Screen work Method | 1/4 scan |
| LED driving method | Constant driving current |
| Gray Grades | 16384 levels for each color |
| Display Color | 4 , 398 , 046 , 511 , 104 |
| Refresh Frequency ( Hz ) | ≥ 800 |
| Picture display method | Dots to dots display synchronized with CRT |
| Signal interface | DVI |
| Input signal | Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV |
| Display format | 800 * 600 , 1024 * 768 , 1280 * 1024 |
| Software | Support windows series system |
| Protection grades | IP 65 |
| Working temperature (ºC ) | -20 +60 |
| Humidity ( RH ) | Up to 95 |
| Stored temperature ( ºC) | -30 +70 |
| Screen Lifetime(hours) | ≥100, 000 |
| Out of controlled dots | ≤3/10, 000 (Out of controlled dots means the pixels of which the brightness, and the wave length are both >10% depart to the normal one) |
| Whole display flatnes | Less than 1mm Juncture |
| Maintance way | Back-maintained or front-maintained, |
| modules displaced | |
| Switch power supply | Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ , 220V/50HZ |
| Power Consumption ( w /m 2 ) | Max : 750 , Average: ≥ 300 |
|
