| Categories | Industrial Keyboard With Trackball |
|---|---|
| Place of Origin: | China |
| Brand Name: | KINGLEADER |
| Model Number: | MKB-FN103A-TB-B |
| Certification: | CE,FCC |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Delivery Time: | 20days |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 2000pcs/month |
| Material of Front Panel: | Stainless steel |
| Keypad Button Material: | Stainless steel |
| Number of Keys: | 103 |
| Key Travel: | 2.0mm |
| Mouse Type: | 38mm Trackball |
| Finish: | Electroplated Black |
| Company Info. |
| KINGLEADER Technology Company |
| Verified Supplier |
| View Contact Details |
| Product List |

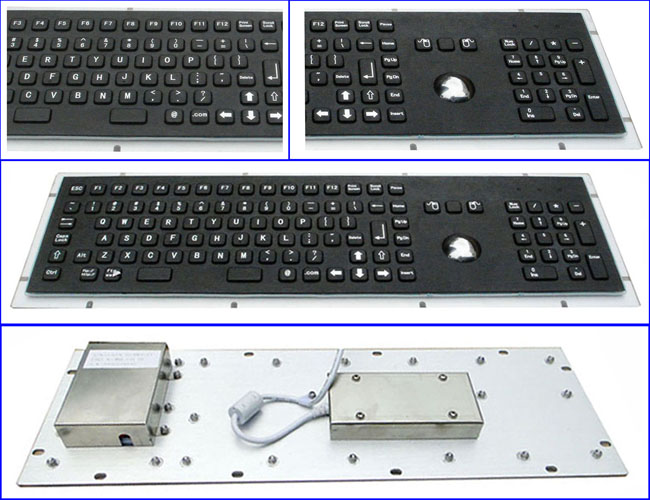

Metal Electroplated Black Industrial Keyboard With Trackball And Numeric Keys
Specifications  | |
Material  | Front panel & Keys: Brushed stainless steel  |
Back panel: Aluminum alloy  | |
Trackball: Stainless steel(Dia: 38mm)  | |
Electrical Data  | Power supply voltage: DC5V 5%  |
Current rating: 20 mA  | |
Interface: USB or PS2  | |
EMC compliant.  | |
FCC: Part 15, class B  | |
Safety: EN 60950, CE compliant  | |
Environmental Characteristics  | Operating temperature: -20 C to + 60 C  |
Storage temperature: - 40 C to + 80 C  | |
Saline mist: 96 hours, IEC 60512-6  | |
Damp heat test at + 40 C: 21 days, IEC 60512-6  | |
Dry heat test at + 85 C: 10 days, IEC 60512-6  | |
Mechanical Data  | Actuation force for key:120±15g  |
Key travel: 2.0mm  | |
Lifetime (cycles): Min 5, 000, 000 actuations  | |
Sealing protection: IP65/NEMA4X from the front  | |
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4  | |
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4  | |
Operation system  | PS2: Win NT4, 98SE, 98ME, 2000, XP  |
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX  | |
Weight and Dimension  | Weight: 2.20kg  |
Dimension:  | |



                             |
