4-6 Colors Paper Cup Flexo Printing Machine & Flexo Press

Categories Label Printing Machine
Place of Origin: Ruian City,China
Brand Name: Gawang Machine
Certification: CE,ISO
Model Number: GW-YS-850
Type: 4-6 Colors Paper Cup Flexo Printing Machine & Flexo Press
Unwinding tension control: Automatic tension control
Rewinding tension control: Automatic tension control
Ceramic anilox cylinder: Transfer ink quickly
IR dryer: For fast drying
Printing colors: 2/4/6 Color
Web guidling system: Accurate edge tracking
Die cutting station: 1 Set
Control System: PLC and touch screen
Thickness of flexo plate: 1.7mm
MOQ: 1 set
Price: 35000USD
Packaging Details: Film wrapping and wooden packing
Delivery Time: Within 30 days after receipt of 30% payment
Payment Terms: Within 30% payment by T/T
Supply Ability: 30 sets/month
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

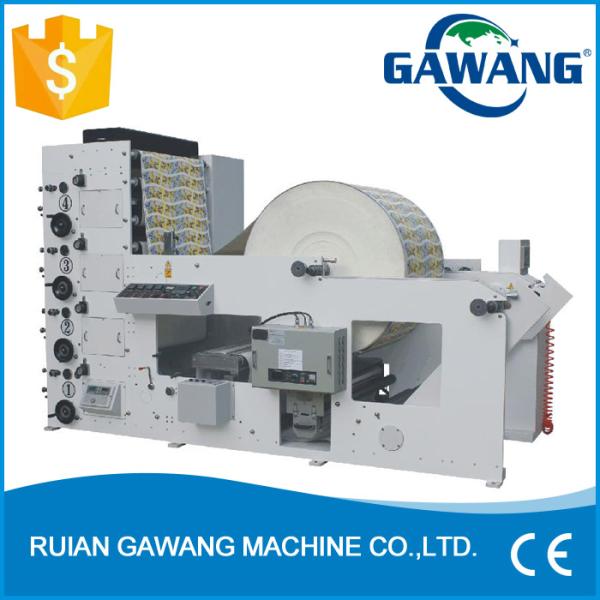

    4-6 Colors Paper Cup Flexo Printing Machine & Flexo Press

    4-6 Colors Paper Cup Flexo Printing Machine & Flexo Press
    1.PLC and HMI
    2.Auto tension control
    3.4,6 color
    4.Speed:5-50m/min

    A.CHARACTERISTIC:

    1,Ceramic anilox cylinderare adopted for ink transferring.

    2, The unwinding and rewinding units are designed with magnetic powder brakes and clutchs for tension control, and flexo machine equipped with Mitsubishi auto tension controller.

    3, Each printing unit is adopted 360°printing plate-adjustment.

    4, All printing units are equipped with a group ofhot air dryer.(UV dryer is for option)

    5, The machine hasone die-cutting station, and it can make printing and die cutting finished in one process.

    6, The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thuspreventing ink from drying.

    7, The main motor is equipped with an imported variable frequency stepless speed govermor.This guarantees the stable performance of flexo press.

    8, The machine can finish material-feeding, printing, vanishing, drying, laminating, die-cutting and rewinding at one stroke. It is an ideal machine for printing trade invoice and top-grade adhesive label.

    B.MAIN TECHNICAL SPECIFICATION:

    Model

    GW-YS-850

    Printing speed

    5-50m/minute

    Printing color

    4/5/6 color

    Max width of paper

    860mm

    Max printing wide

    850mm

    Max unwinding diameter

    800mm

    Max rewinding diameter

    800mm

    Printing length

    175-355mm

    Thickness of flexo plate

    1.7mm

    Precision of chromatography

    ±0.1mm

    Main motor

    2.2kw frequency conversion speed adjustment

    Total motor

    14kw

    Power supply

    380v±10% 50HZ

    Overall dimension

    2.6(L)×1.1(W)×2.6(H)m

    Weight

    about 3350kg

    C.OPTION:

    1, Web guiding system

    2, UV dryer

    3, Separate unwinder shelf (diameter up to 1200mm)

    4, Corona treater

    5, Cold stamping unit

    6, Video inspecting system

    7, Safe cover for printing unit
